Overview
Diaphragm valves are versatile and highly reliable components in industrial systems, known for their simple operation and excellent flow control. With a flexible diaphragm as the closing mechanism, these valves provide leak-proof sealing, making them ideal for handling corrosive, abrasive, and sterile fluids. Common industries utilizing diaphragm valves include pharmaceuticals, food and beverage, and chemical processing.
P&ID Symbol of Diaphragm Valves
The diaphragm valve is represented in P&IDs by a unique symbol highlighting its flexible diaphragm mechanism:
| Symbol | Name | Description |
|---|
 | Diaphragm Valve | A valve with a flexible diaphragm that opens and closes to control flow. |
- ISA Standard: Adheres to ISA S5.1 standards.
- Symbol Variation: Denotes type (e.g., weir or straight-through).
Applications of Diaphragm Valves
Diaphragm valves are used in applications requiring reliable sealing and flow control, including:
- Pharmaceuticals: Sterile processing systems for fluids and gases.
- Food and Beverage: Hygienic flow control in clean-in-place (CIP) systems.
- Chemical Processing: Handling corrosive and abrasive media.
- Water Treatment: Regulating flow in filtration systems.
Technical Specifications
Features:
- Leak-Proof Design: Flexible diaphragm ensures tight sealing.
- Corrosion Resistance: Suitable for handling aggressive chemicals.
- Hygienic Operation: Designed for easy cleaning and maintenance.
Types of Diaphragm Valves:
- Weir-Type Diaphragm Valve: Suitable for throttling and flow regulation.
- Straight-Through Diaphragm Valve: Ideal for low-pressure applications and minimal flow restriction.
Data Sheet of Diaphragm Valve
| Attribute | Details |
|---|
| Valve Type | Diaphragm Valve |
| Design | Weir, Straight-Through |
| Operation | Manual, Pneumatic, Electric |
| Standards | ANSI, API, ISO, DIN |
| Industries | Pharmaceuticals, Food and Beverage, Chemical Processing |
Material Specifications
| Component | Material Options |
|---|
| Body | Stainless Steel, PVC, Cast Iron |
| Diaphragm | EPDM, PTFE, Viton |
| Stem | Stainless Steel |
Technical Specifications
| Attribute | Options |
|---|
| Size Range | 1/2 inch to 24 inches |
| Pressure Rating | Up to 300 PSI |
| Temperature Range | -20°F to 400°F (-29°C to 204°C) |
| End Connections | Flanged, Threaded, Socket Weld |
Actuation Options
| Actuator Type | Details |
|---|
| Manual | Handwheel |
| Pneumatic | Double-Acting, Spring Return |
| Electric | On/Off, Modulating |
| Attribute | Details |
|---|
| Leakage Class | Class VI (Soft Seat) |
| Flow Coefficient (Cv) | Moderate Cv for accurate flow control |
| Cycle Life | 100,000+ Cycles |
Accessories and Add-Ons
| Accessory | Details |
|---|
| Positioner | For pneumatic or electric actuators |
| Limit Switches | Indicates open/closed position |
| Locking Mechanism | Prevents unauthorized operation |
Example Configurations
| Configuration | Details |
|---|
| Manual Operation | 2-inch Weir-Type Valve, Stainless Steel Body, Flanged End, Handwheel |
| Pneumatic Actuation | 4-inch Straight-Through Valve, PVC Body, Spring Return Actuator, Threaded End |
| Electric Actuation | 6-inch Weir-Type Valve, Cast Iron Body, Modulating Electric Actuator, Flanged End |
| Parameter | Details |
|---|
| Warranty | 12-24 Months |
| Certifications | ISO 9001, API 609, CE |
| Testing | Hydrostatic, Air Leakage |
Micro Data Sheet for Diaphragm Valves
| Attribute | Value |
|---|
| Material | Stainless Steel |
| Size | 2 inches |
| Pressure Rating | 150 PSI |
| Temperature Range | -20°F to 250°F |
| End Connection Type | Flanged |
| Actuator Type | Manual |
Vendor List for Diaphragm Valves
- Emerson: Supplies high-quality weir-type diaphragm valves for sterile applications.
- ITT Engineered Valves: Specializes in hygienic diaphragm valves for the pharmaceutical industry.
- Gemu: Offers corrosion-resistant diaphragm valves for chemical processing.
Explore vendors for diaphragm valves in your region using Mails AI.
Cost Data for Diaphragm Valves
| Parameter | Specification | Estimated Cost |
|---|
| Material | PVC | $150 - $500 |
| Valve Type | Weir | $200 - $1,000 |
| Size (Diameter) | 2 inches | $300 - $800 |
For accurate pricing of diaphragm valves, access cost data using Cost AI.

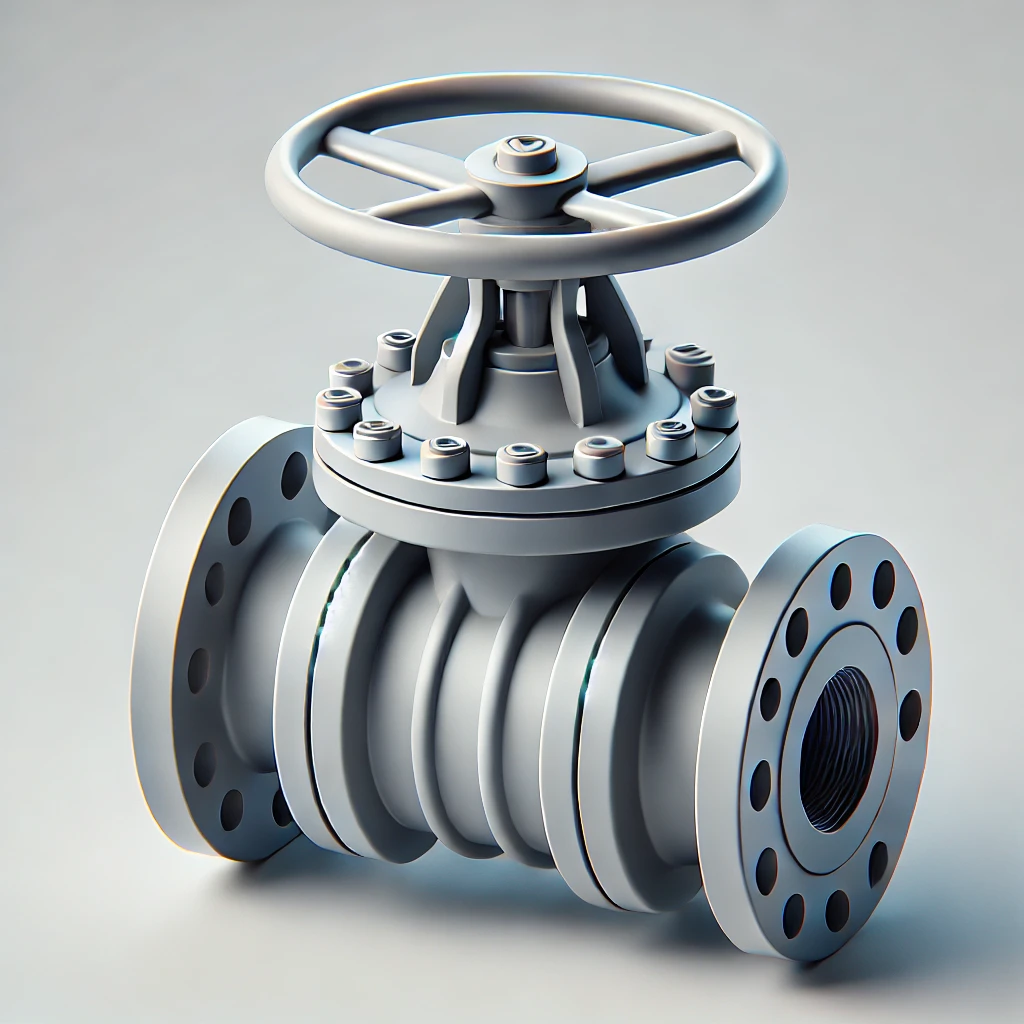

To integrate a 3D model of a diaphragm valve in a Process Plant use Model Builder.
Conclusion
Diaphragm valves offer precise flow control and exceptional reliability for handling a wide range of fluids. Their hygienic design and versatility make them a top choice in industries requiring stringent process controls. Use this guide alongside tools like Micro Data Sheets, Vendor Lists, and Cost AI to make informed decisions and optimize your projects.
